Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 5.0" bore X 2.0" Rod Cylinde

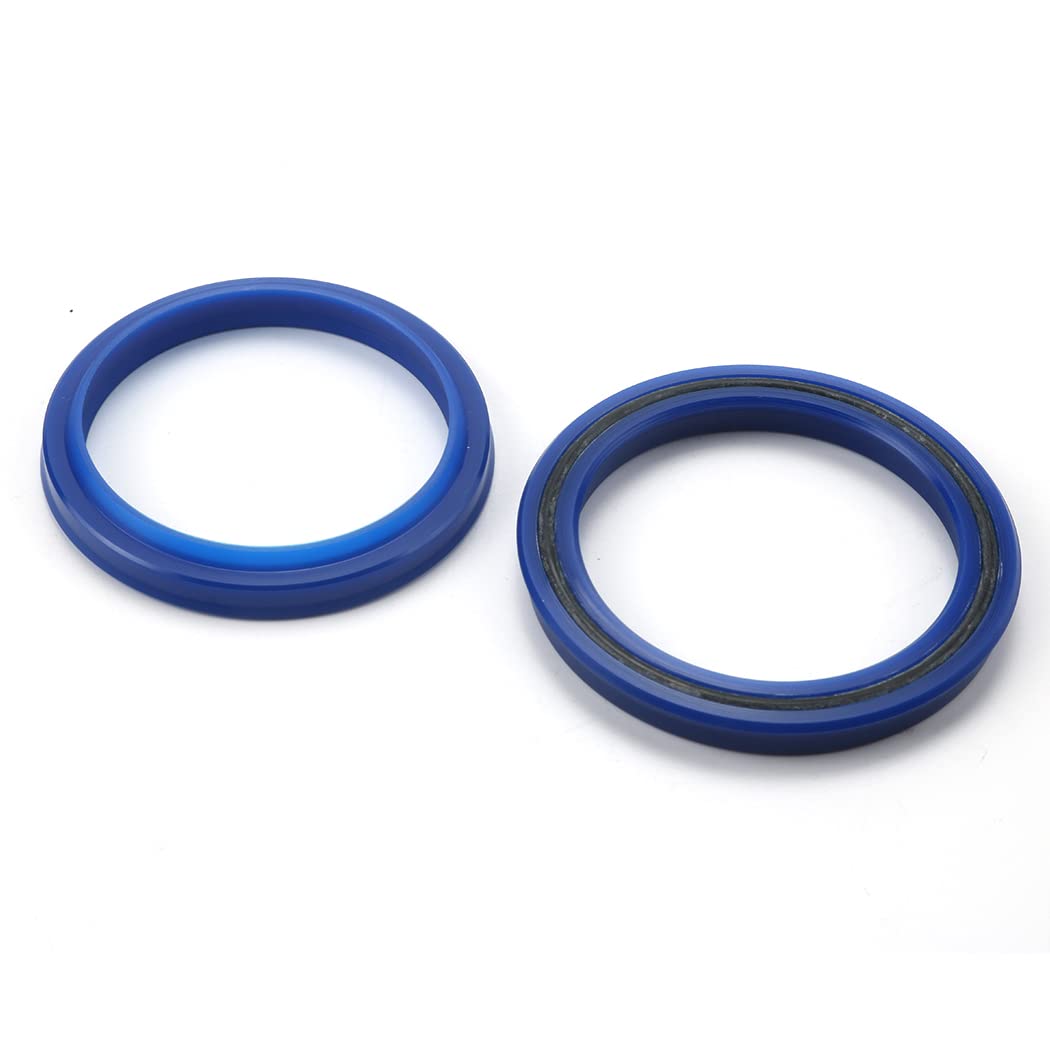

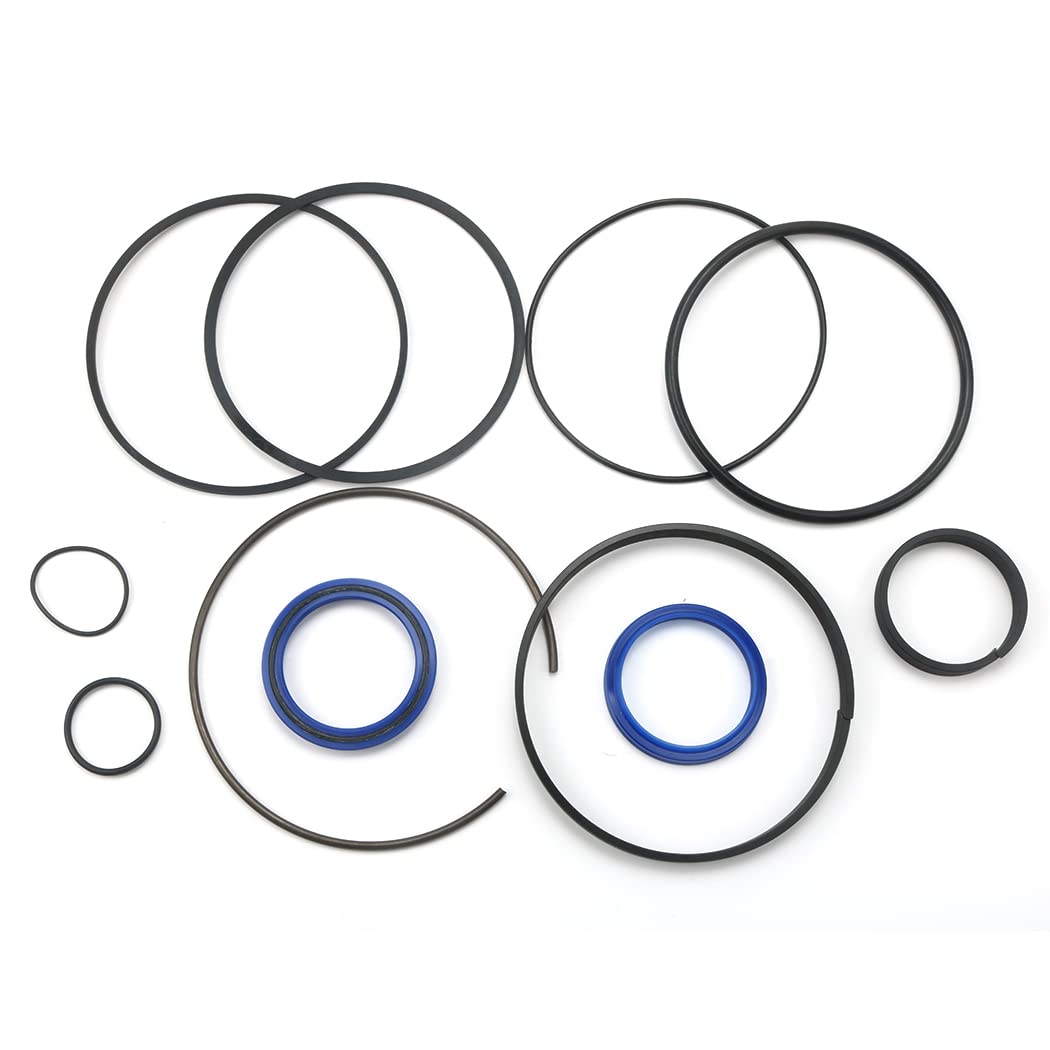

The seal kit is used to rebuilt Speeco design. To know whether it fits your cylinder, one good way is to disassemble and measure your cylinder to compare with each item specification.1. Cylinder tube Bore (I.D.) 4.5" x rod (O.D) 1.75". Please note some cylinder rod head OD size is not rod size. 2. Wear rings. Piston wear ring : 127 mm (OD 5") x 120.65mm (ID 4.75”) x 9.5mm (0.375" wide), Nylon Rod wear ring : 50.8mm (ID 2") x 57.15mm (OD 2.25”) x 9.5mm (0.375" wide) Nylon 3. Piston seals 1 square ring and 1 O-ring. Piston Square ring: D127 mm x117mm x 3.28mm; O-ring (installed under the square ring): 115 mm x 2.65 mm . CPU + NBR 4. Rod O-ring : 50.8mm x 63.5mm x 5mm, CPU. There is O-ring inside. 5. Rod dust ring : 50.8mm x 60.3mm 5.5mm /7.3mm, TPU Below is 5" bore x 2" rod cylinder Specification that OEM made by this seal kit: Retracted (center to center between rod mountain hole and clevis hole: 32.4” Extended (center to center same as above): 56.4” Stroke: 24±0.05” Dimension from center of clevis hole to back face of cylinder: 2.95” Dimension from center of rod end hole to front face of rod: 1.06” Dimension from center of rod end hole to front face of cylinder: 1.18” Ports: 1/2” NPT Dimension from port to port: 25.4” Rod: 2.0" rod Rod end mountain hole: 0.55” Clevis Mountain hole: 1.16” Dimension between mountain clevis to clevis: 0.87” Thickness of each mountain clevis: 0.375” Length of each mounting clevis: 4.125”

• Seal Size: 5.0"Bore x 2.0"
• Brand: Jetuplusllc
• Part Type: cylinder rebuild seal kit
• Material: Rubber Plastic
