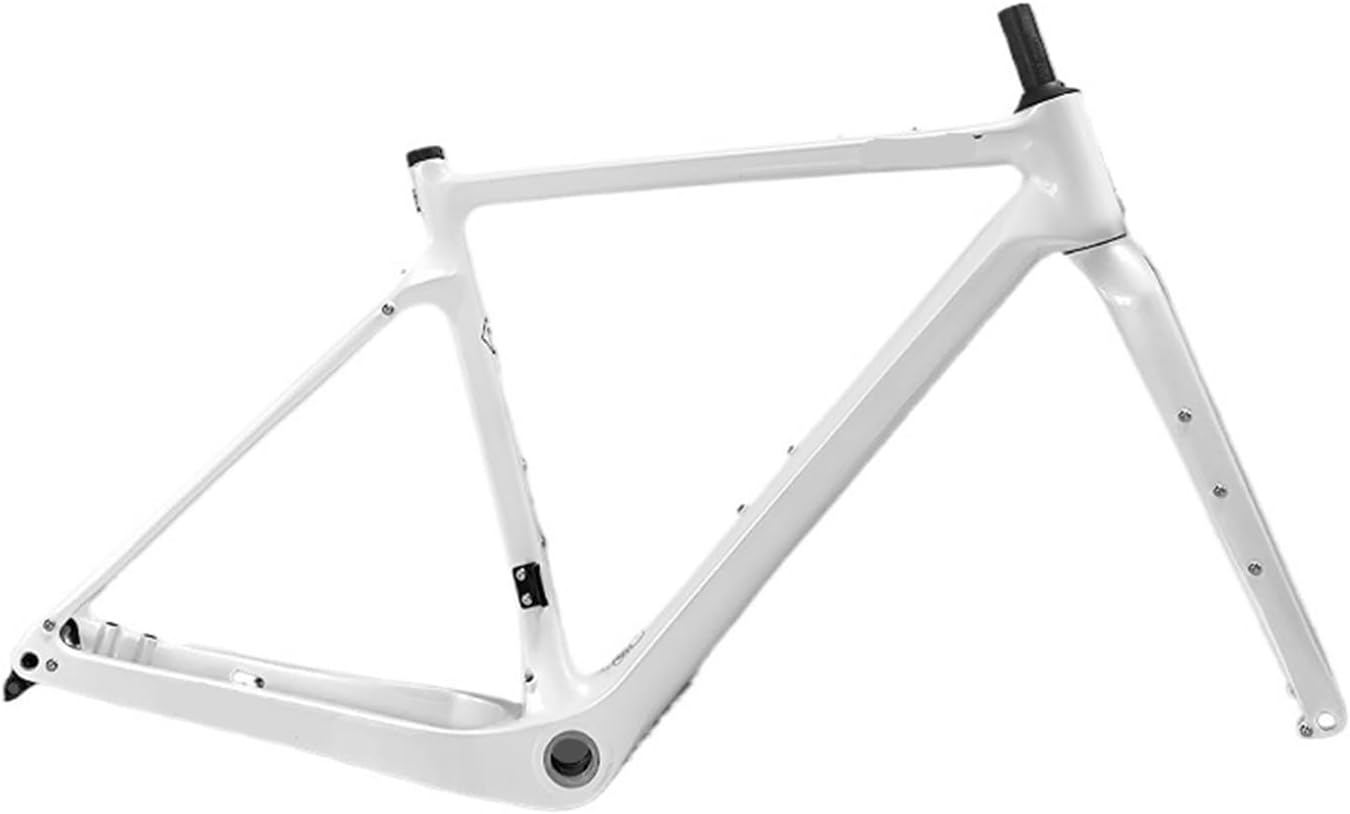

Suitable for BXT Carbon Fiber Road Bike Frame, disc Brake, 27.5-inch/700C Thru-axle Internal Cable Routing

Material: T1000 carbon fiber;Frame model: Gravel-135 (without head tube)Frame size: 49/52/54/56/58 cmSuitable for bottom bracket: threaded BSA (68mm);Suitable for seat tube clamp: 31.8mm;Applicable to seat tube: 27.2mm;Suitable for headphones: upper 1-1/2 (52mm), lower 1-1/2 (52mm);Suitable for braking system: flat mounted disc brake (140mm);Applicable to wheel hub: front fork (100x12mm), frame (142x12mm);Applicable tires: 700Cx45C or 27.5er 2.1 tires;Maximum load: 150kg;Frame weight: 1140g +/-50g (52cm frame);Fork weight: 490g +/-20g;Recommended height: 49 cm (155-164 cm)/52 cm (165-172 cm)/54 cm (173-180 cm)/56 cm (181-187 cm)/58 cm (188-196 cm);==========Chemicals of Very High Concern: NoneSurface treatment mode: matteModel: GRAVEL-135Purpose: road bikeType: Fully hidden carbon fiber bicycle frameMaterial: T1000 carbon fiberApplicable to bottom bracket headset: threaded (68mm)Suitable for seat tube clamp: 31.8mmFits 27.2mm seatpostSuitable for headphones: upper 1-1/2 (52mm), lower 1-1/2 (52mm)Applicable to wheel hub: front fork (100x12mm), frame (142x12mm)Suitable for braking system: flat mounted disc brake (140mm)Applicable tires: 700Cx45C or 27.5er 2.1 tiresBrake and transmission wiring: completely hiddenRecommended height: 49 cm (165-175 cm)/52 cm (175-185 cm)/54 cm (185-195 cm)/56 cm (above 190 cm)Maximum load: 150kgContains: frame + front fork + seat post clamp + through-axle quick release rear hook (M12*1.5P) + headset + cable tube spacer;

• Compatibility: Suitable for; meeting bicycle frame matching needs.
• Product type: Carbon fiber bicycle frame; specially designed for disc brake road bicycles.
• Dimensions: Supports 27.5-inch/700C wheel diameter; equipped with thru-axle.
• Main features: Internal cable routing design; complies with bicycle structural requirements.
• Scope of application: used for road bicycle frame assembly/replacement; suitable for outdoor riding scenes.
